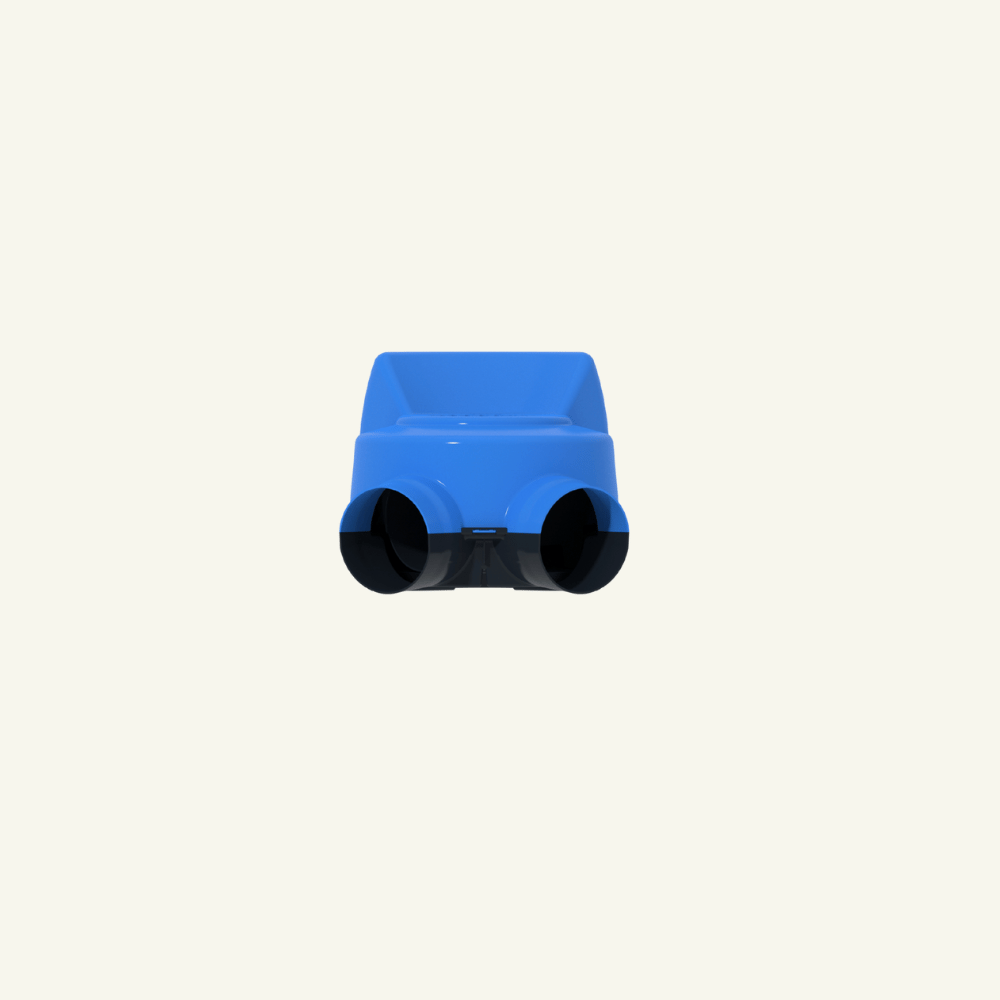

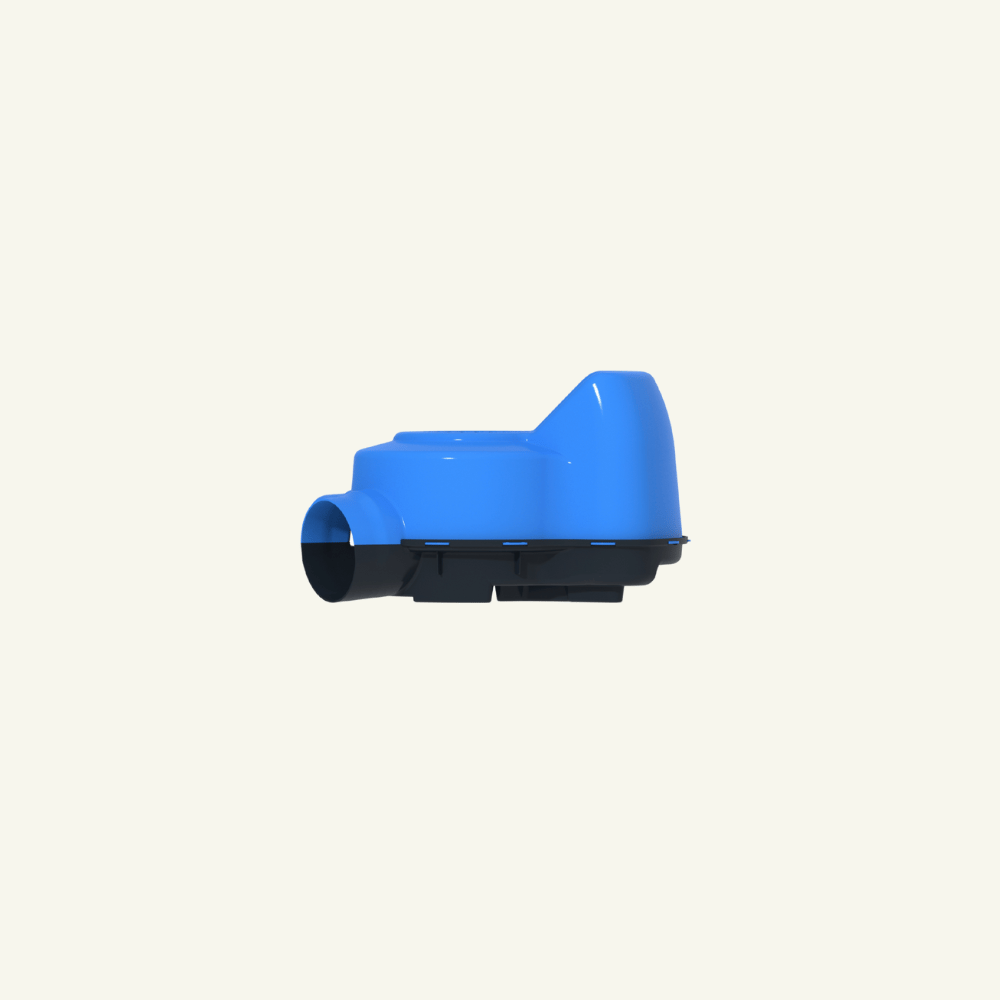

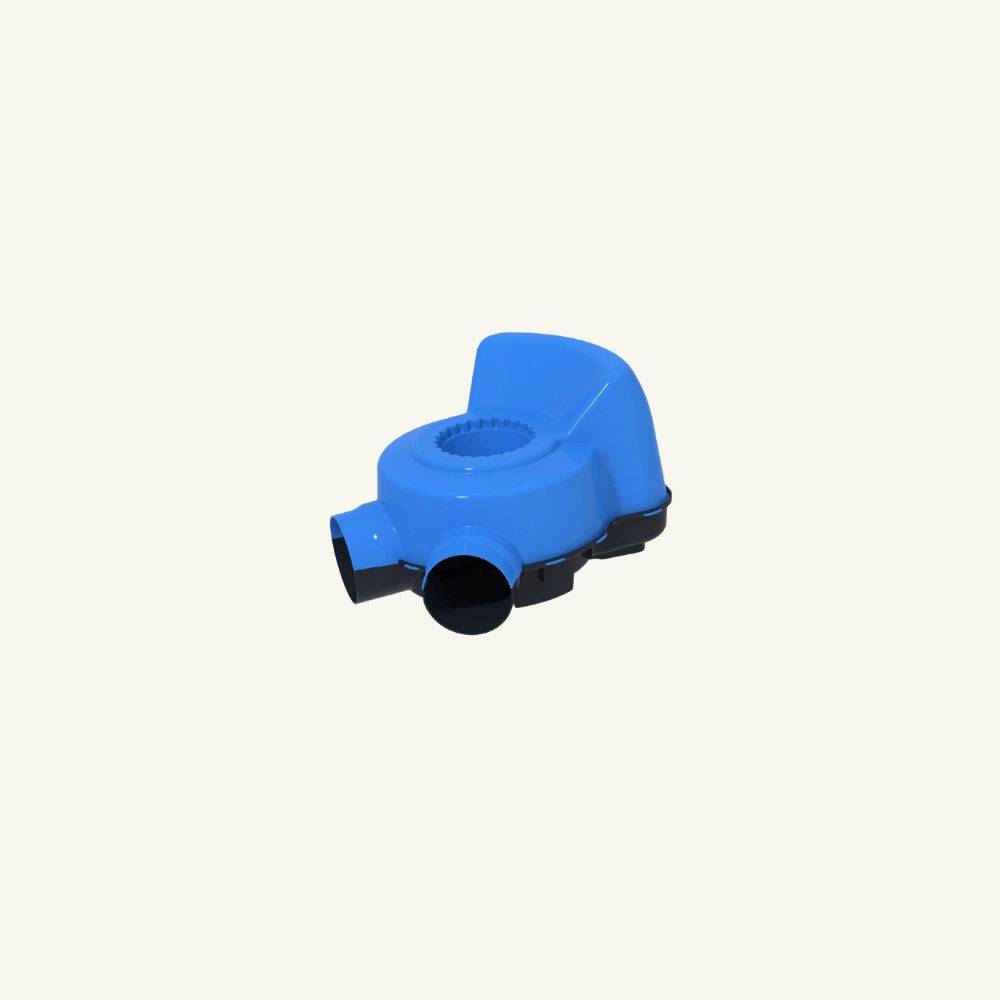

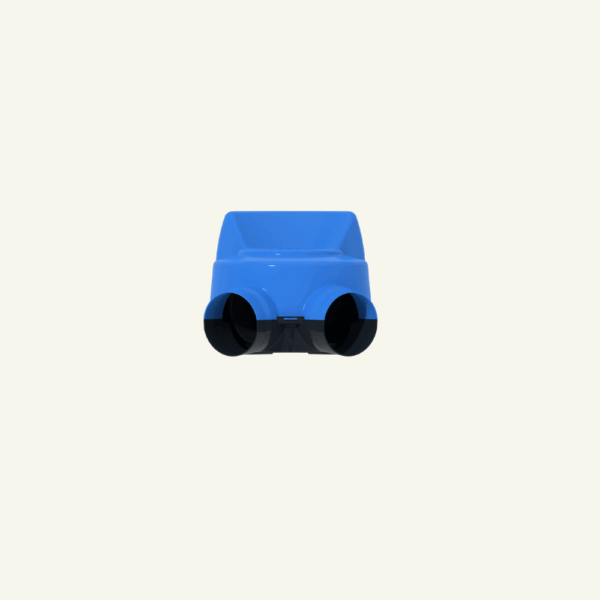

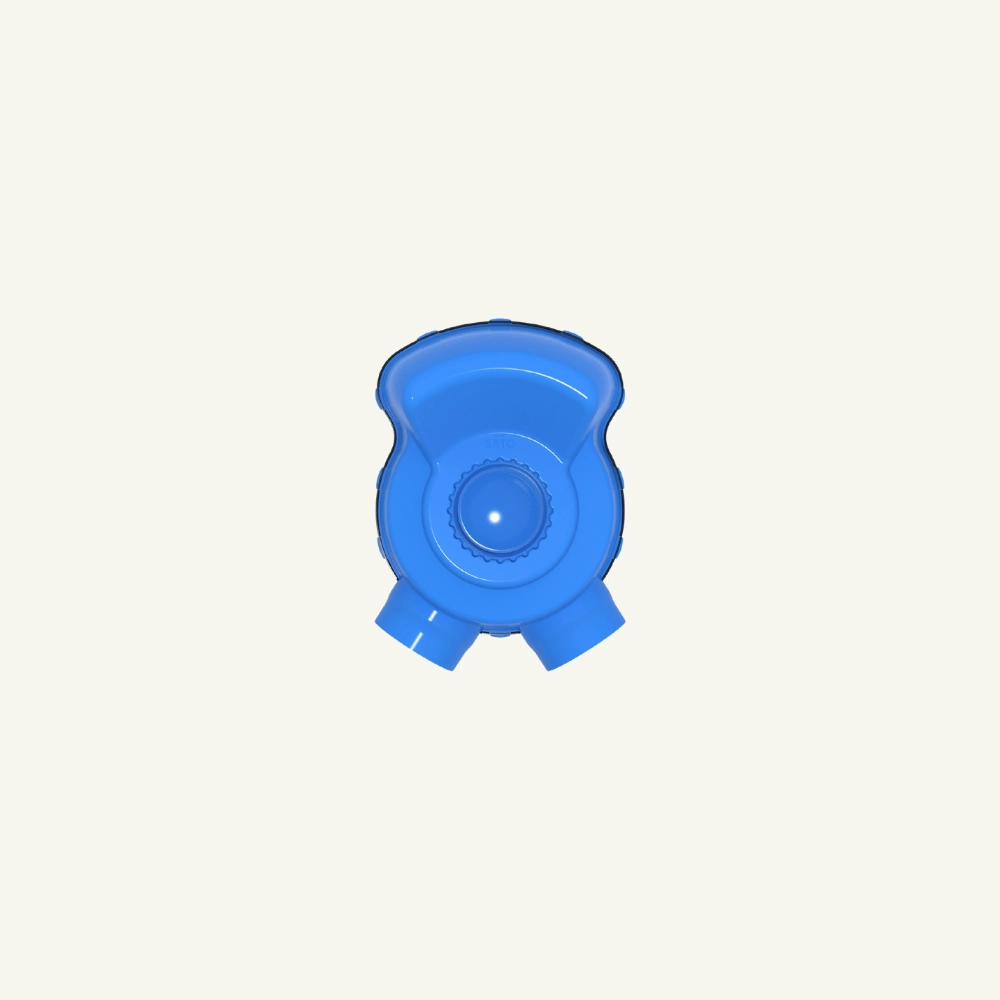

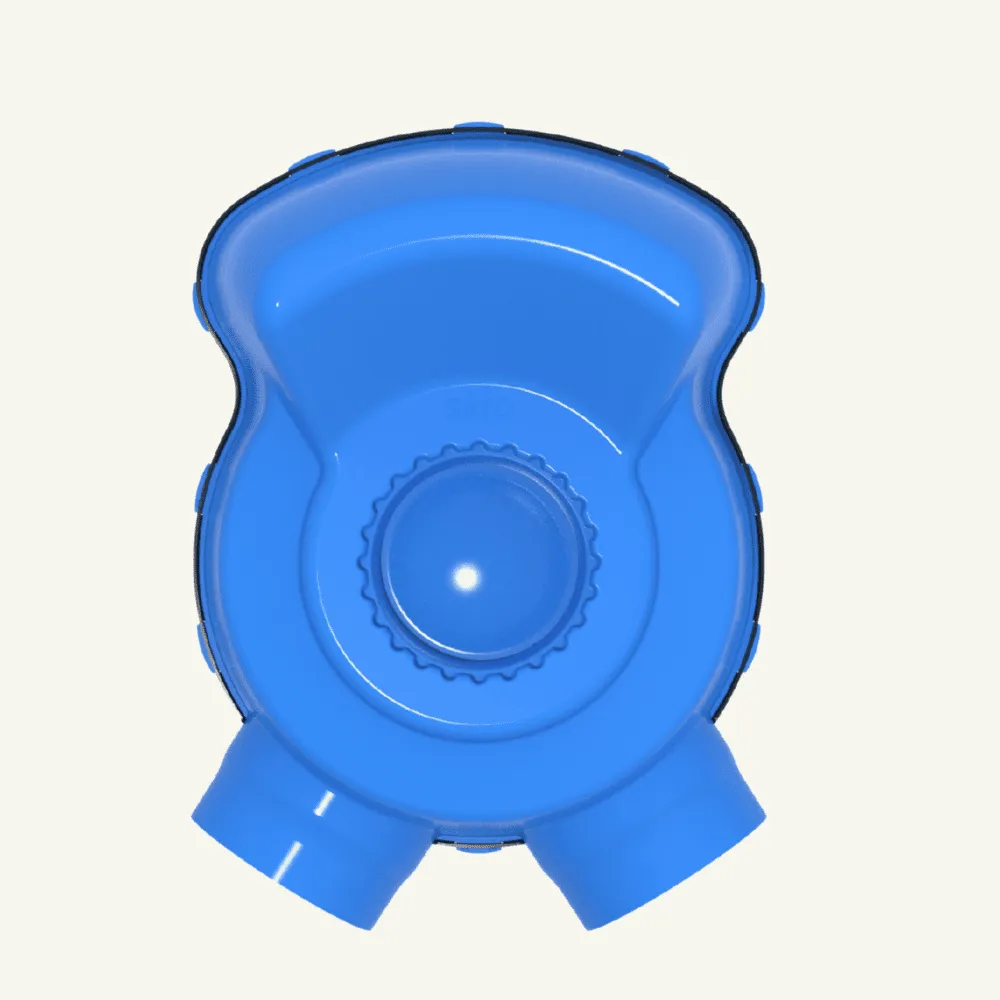

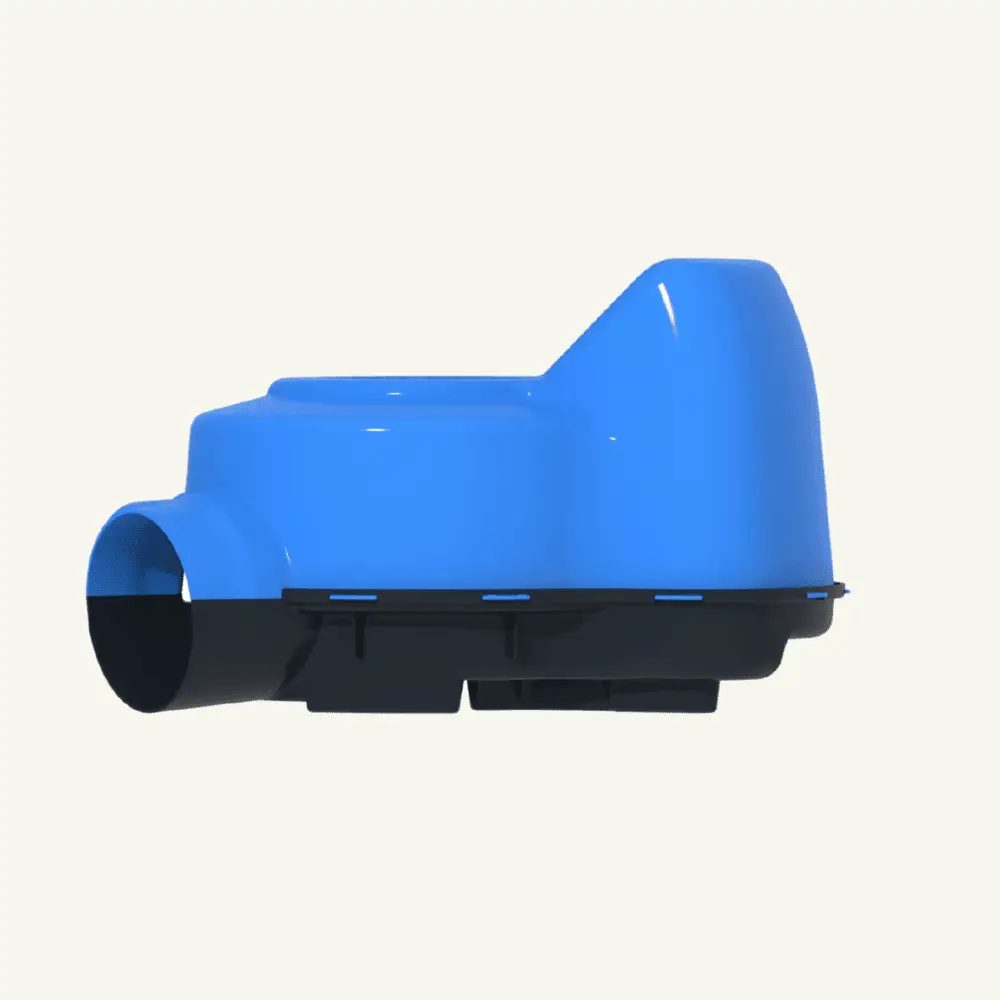

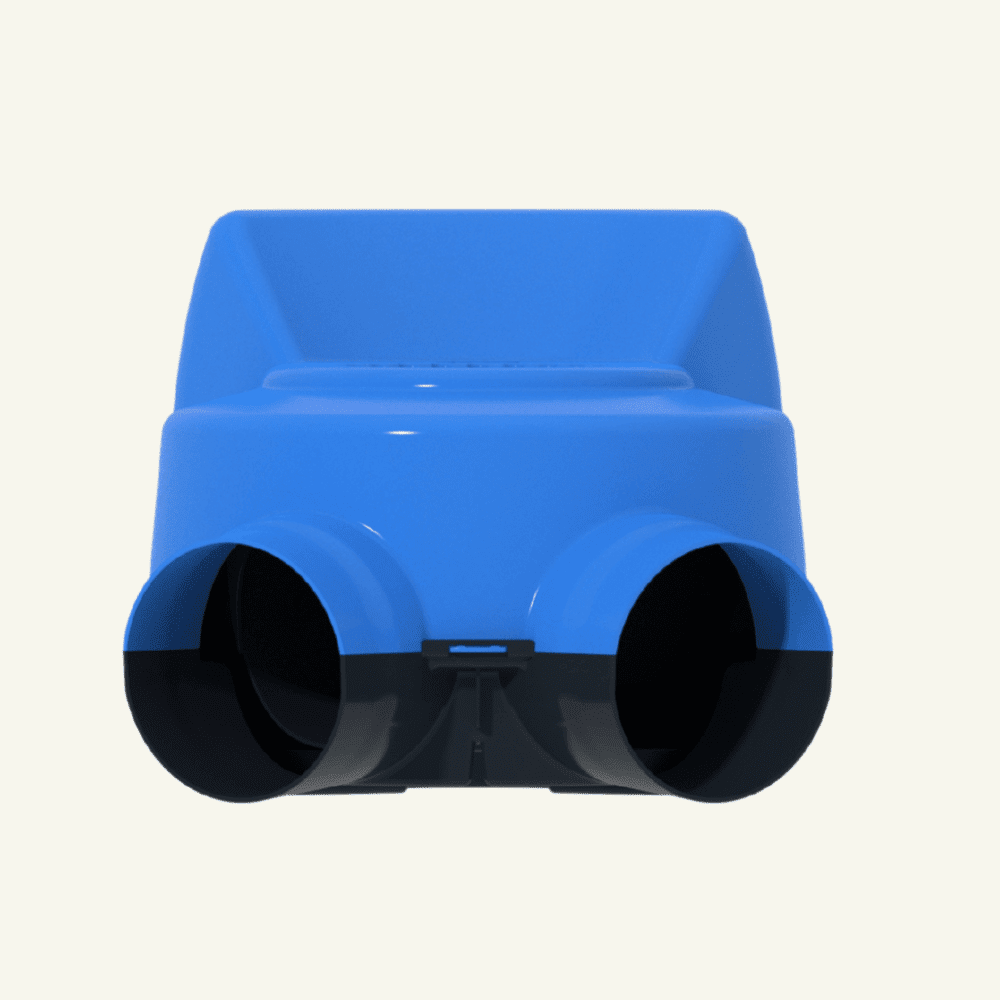

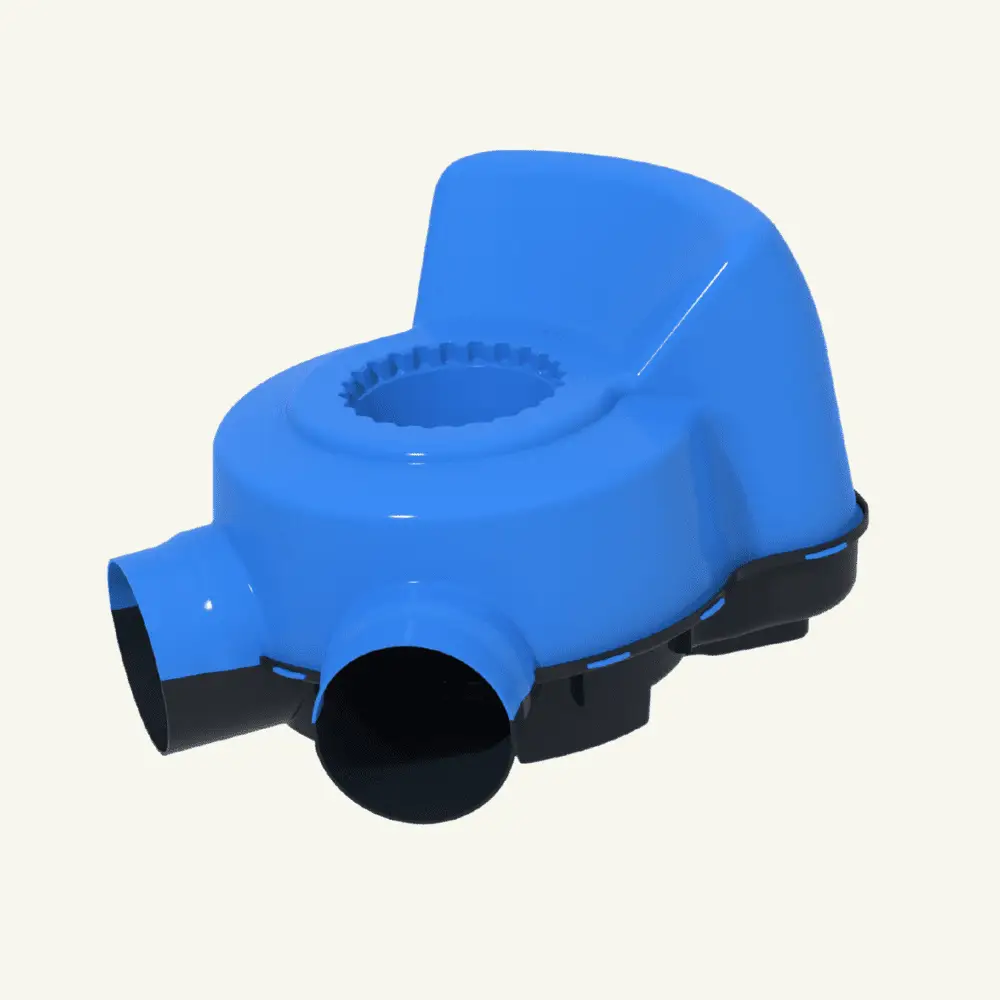

SATO 324R

TWIN OUTLET UNIVERSAL V-TRAP CONNECTION SYSTEM WITH RUBBER COUNTERWEIGHT

The perfect partner to connect all our toilet pans available in India to two offset pits.

Benefits
  • The SATO324R twin outlet connection and sealing system diverts waste to two offset pits using the SATO range of pans and the V-Trap system.
  • The trap door technology minimises odour, keeps insects away and eliminates visual contact with waste.
  • The V-trap facilitates the construction and sustainable use of twin pit latrines and safely managed sanitation. When one pit is full, the waste can be easily redirected to the alternative pit, allowing the waste to compost in the first pit which can be safely disposed of.
Key features
  • The V-Trap is designed to house the pan on top and two pipes to the side that directs waste to twin offset pits for waste collection
  • Connection and sealing system for all toilet pans and stools with 100mm outer diameter outlet
  • Works with full sized cement door
  • Can accommodate 110mm and 114mm diameter pipes
  • Provides 24 locking positions to orient toilet in various positions
  • Households can easily switch flow direction between pits without needing to call a mason
Dimensions
Size: 393.2 mm (L) 280.2 mm (W)
