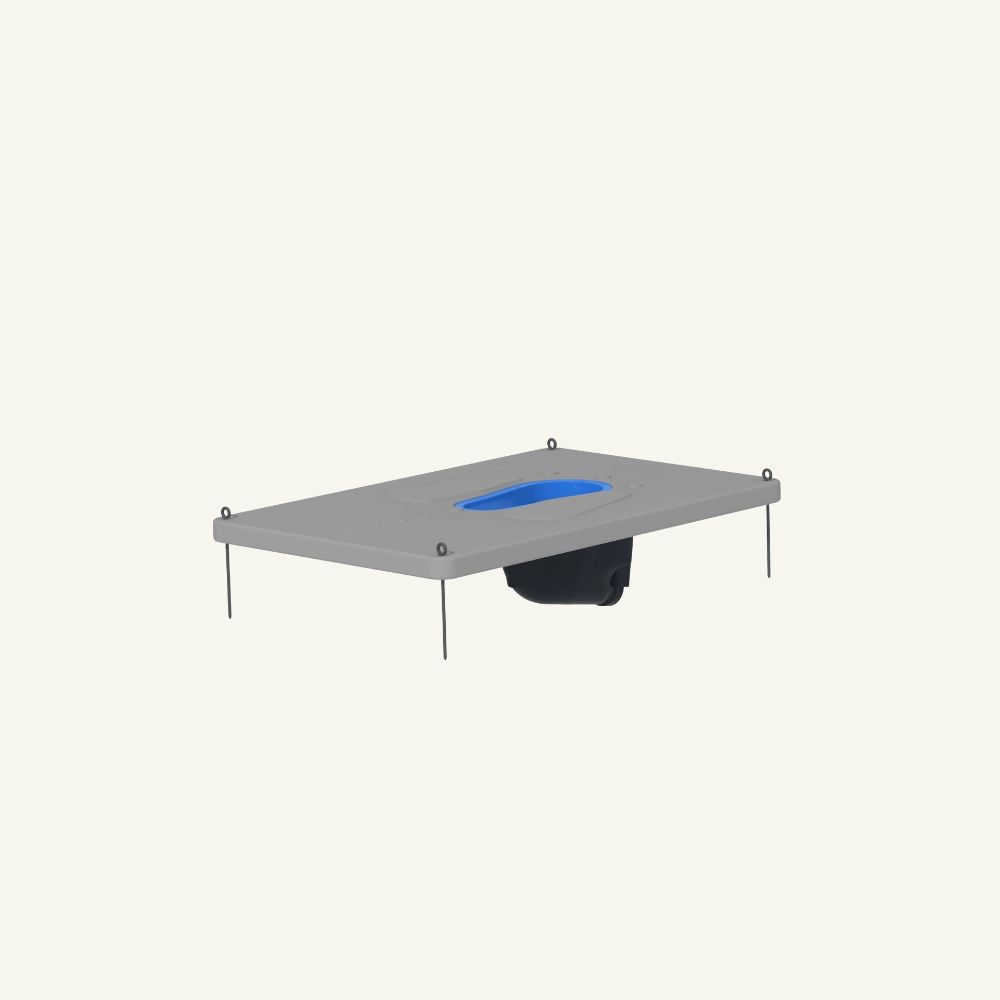

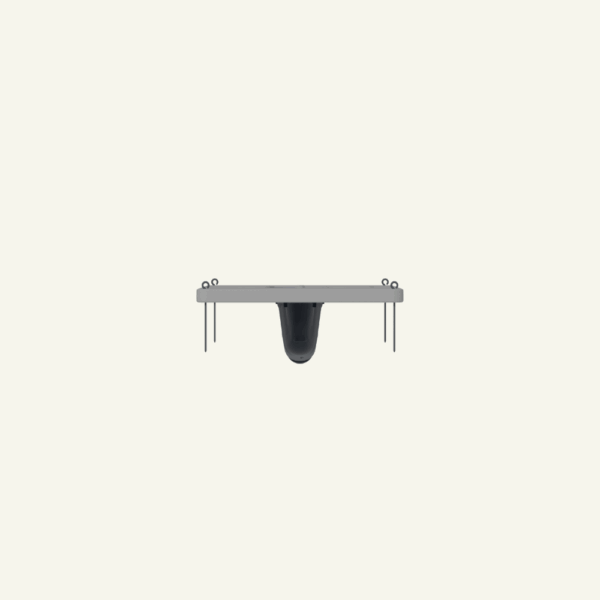

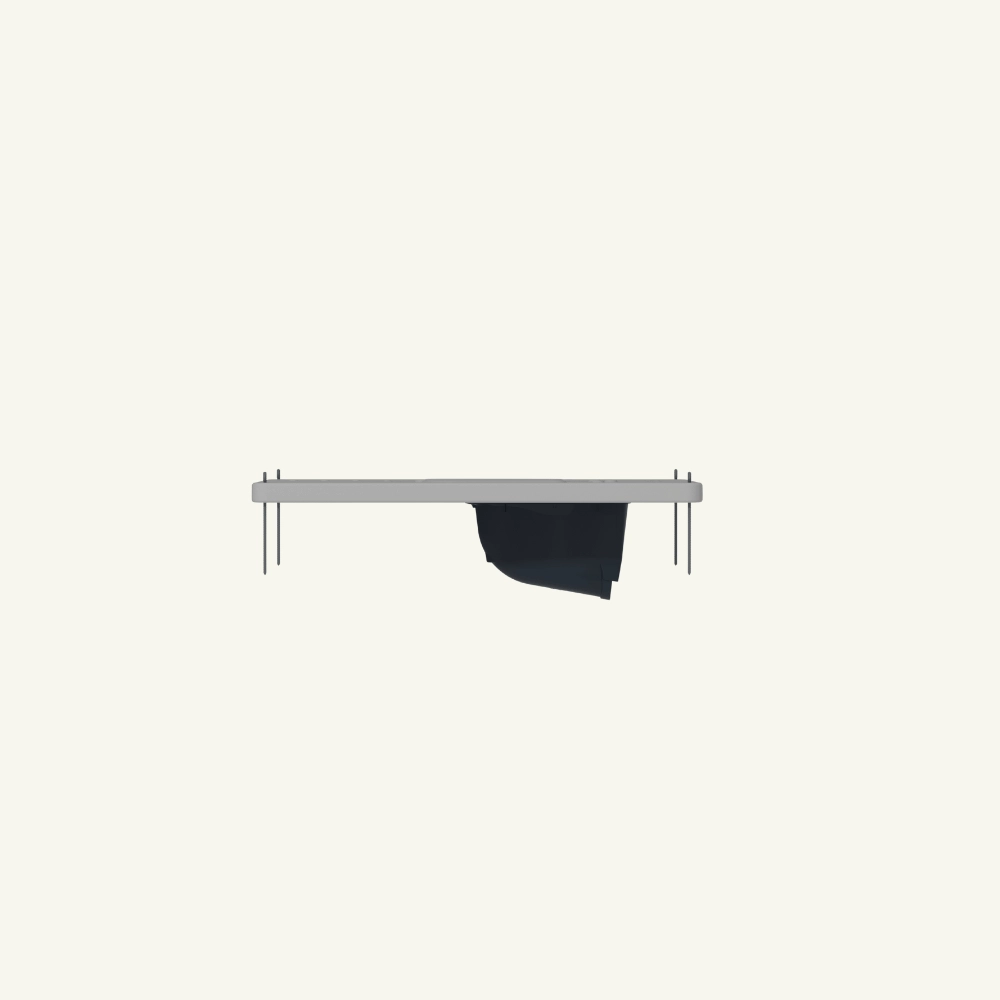

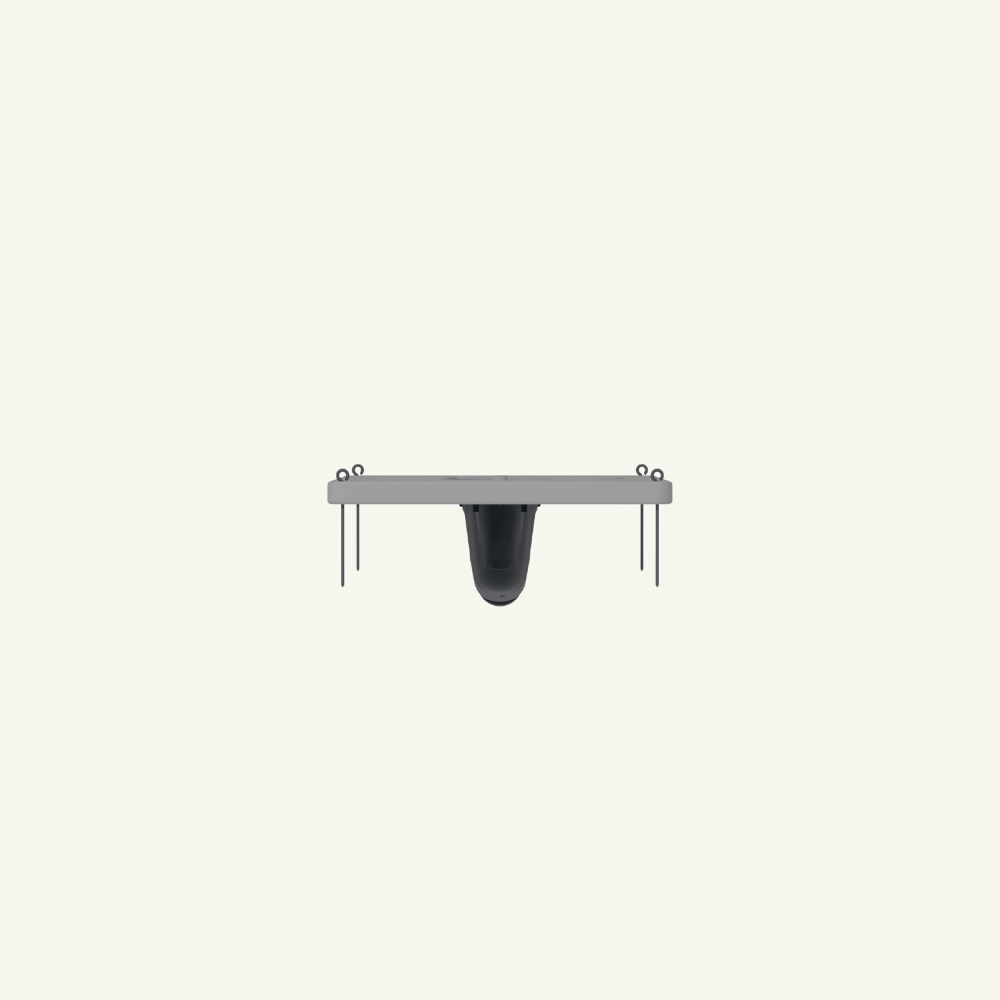

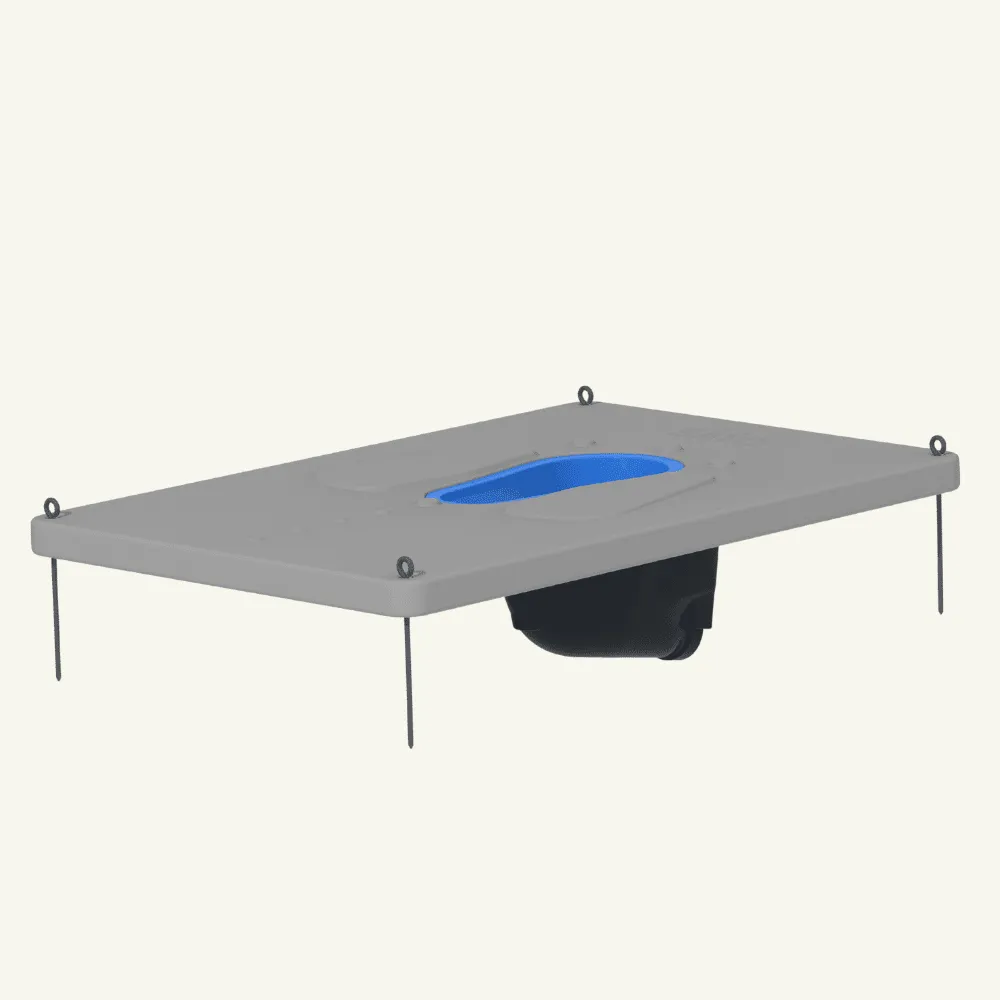

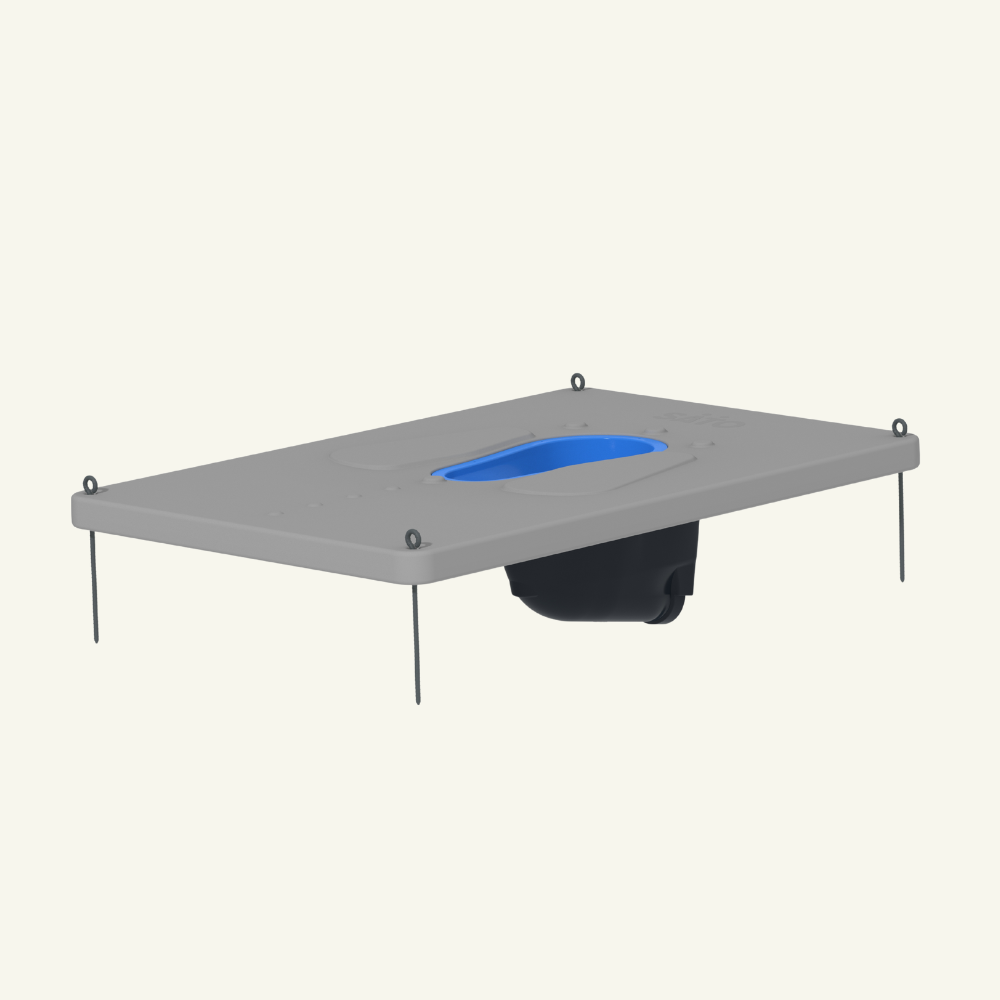

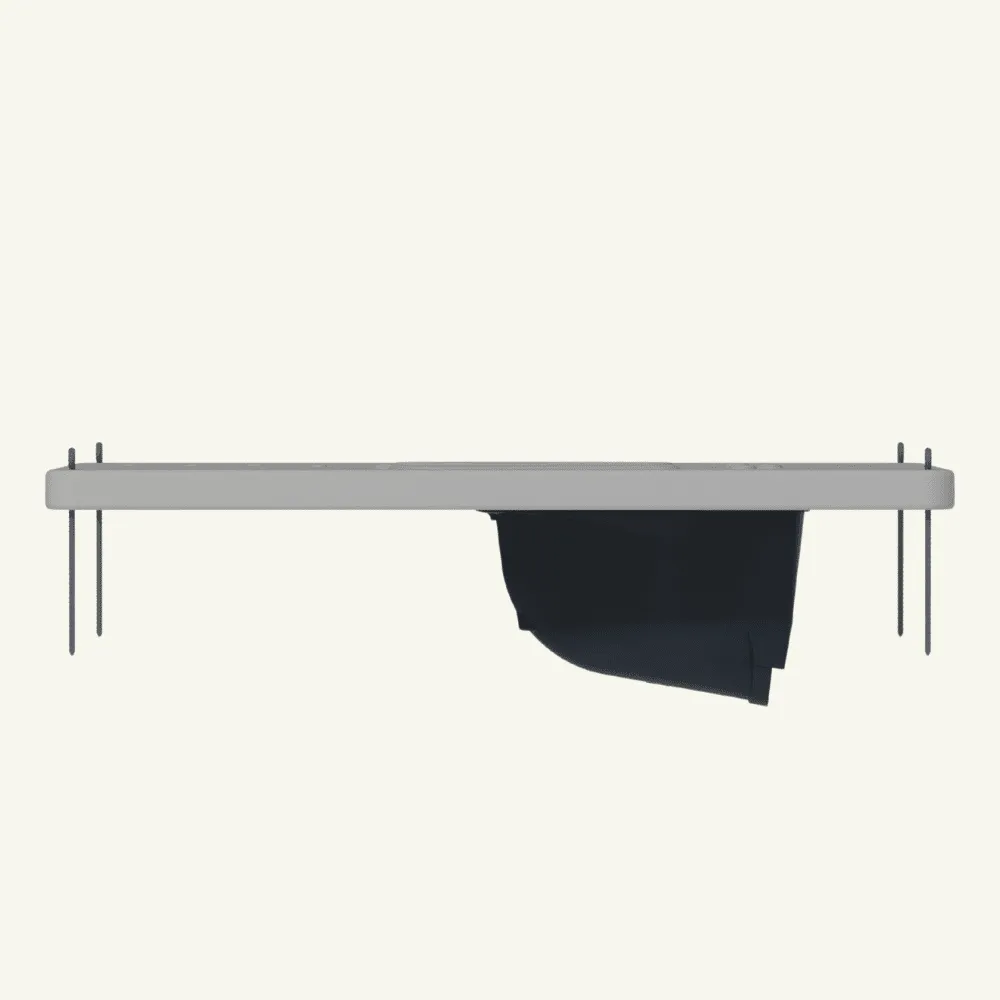

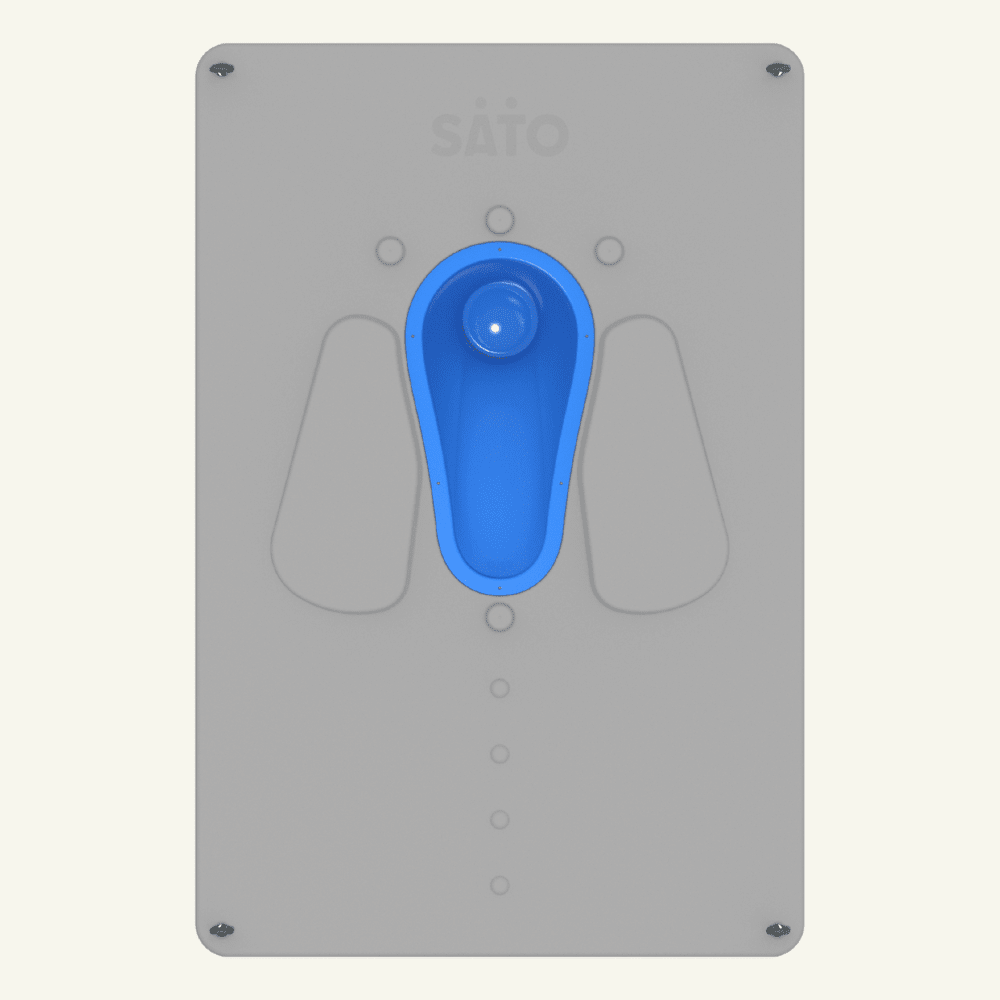

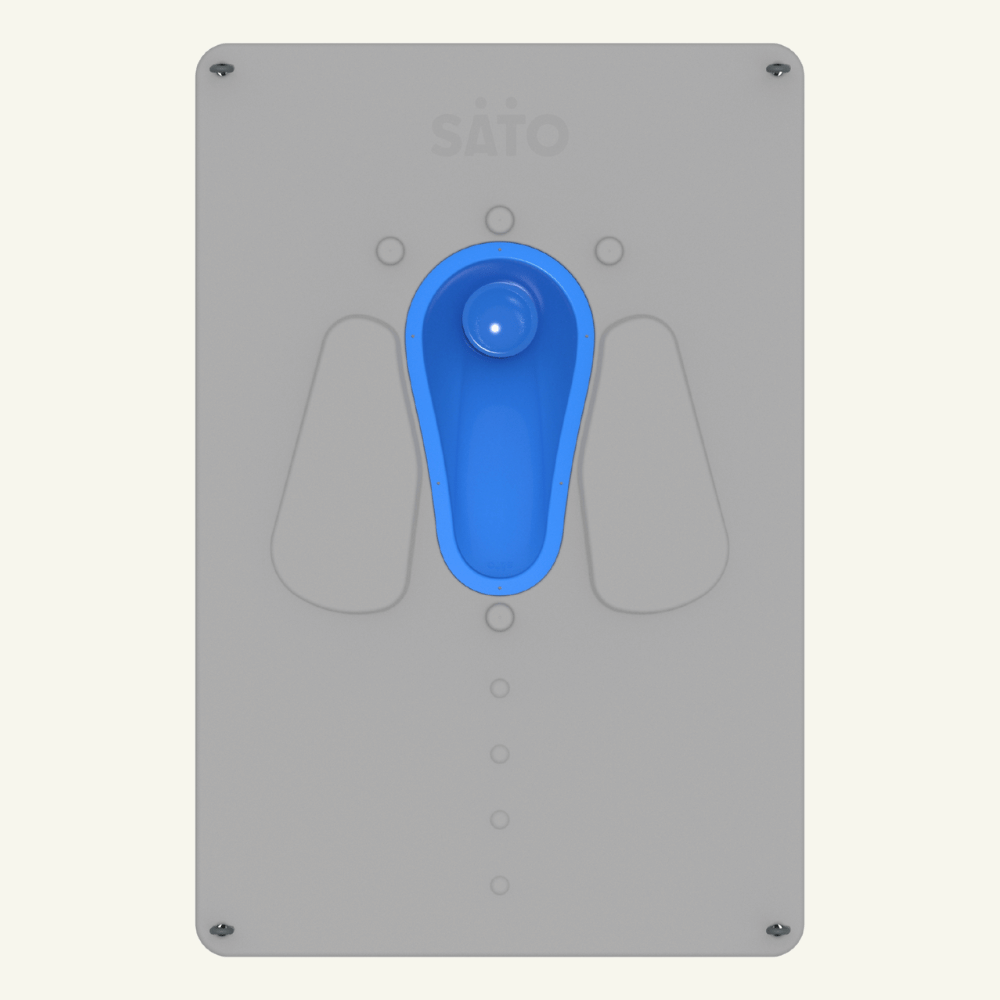

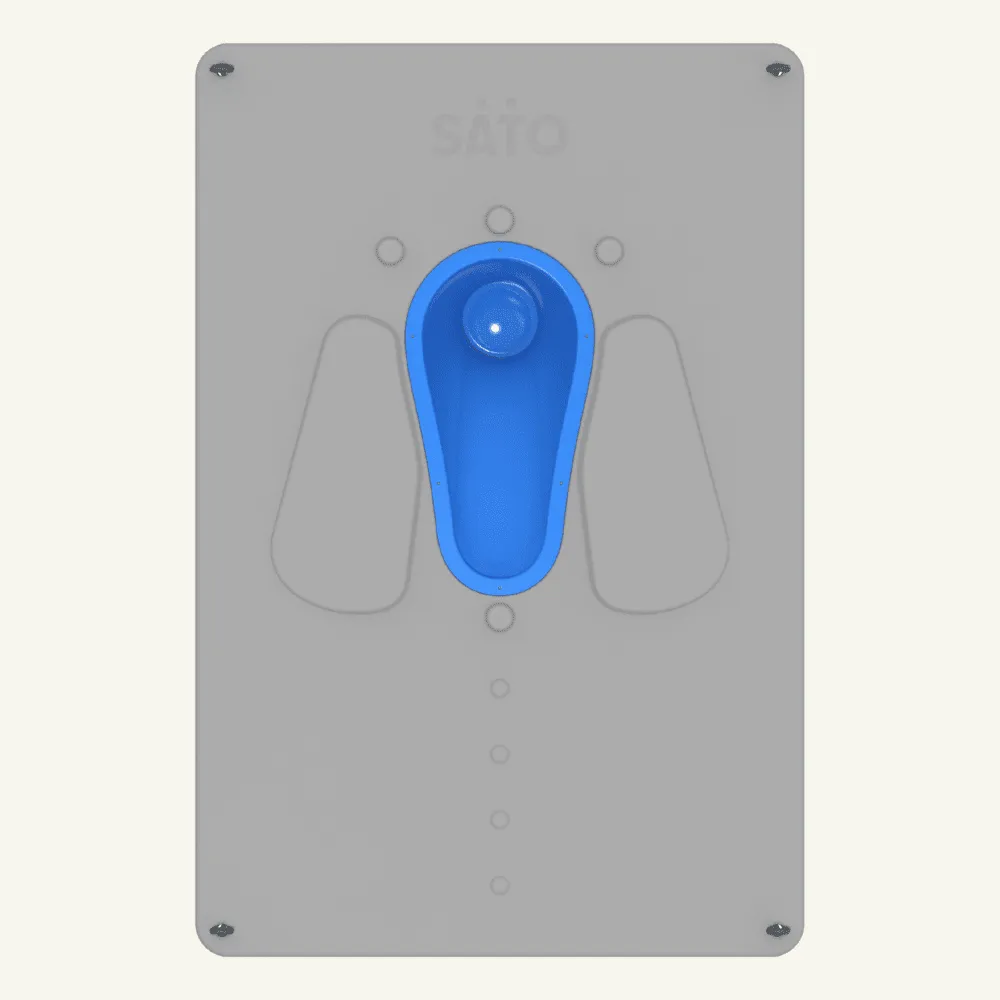

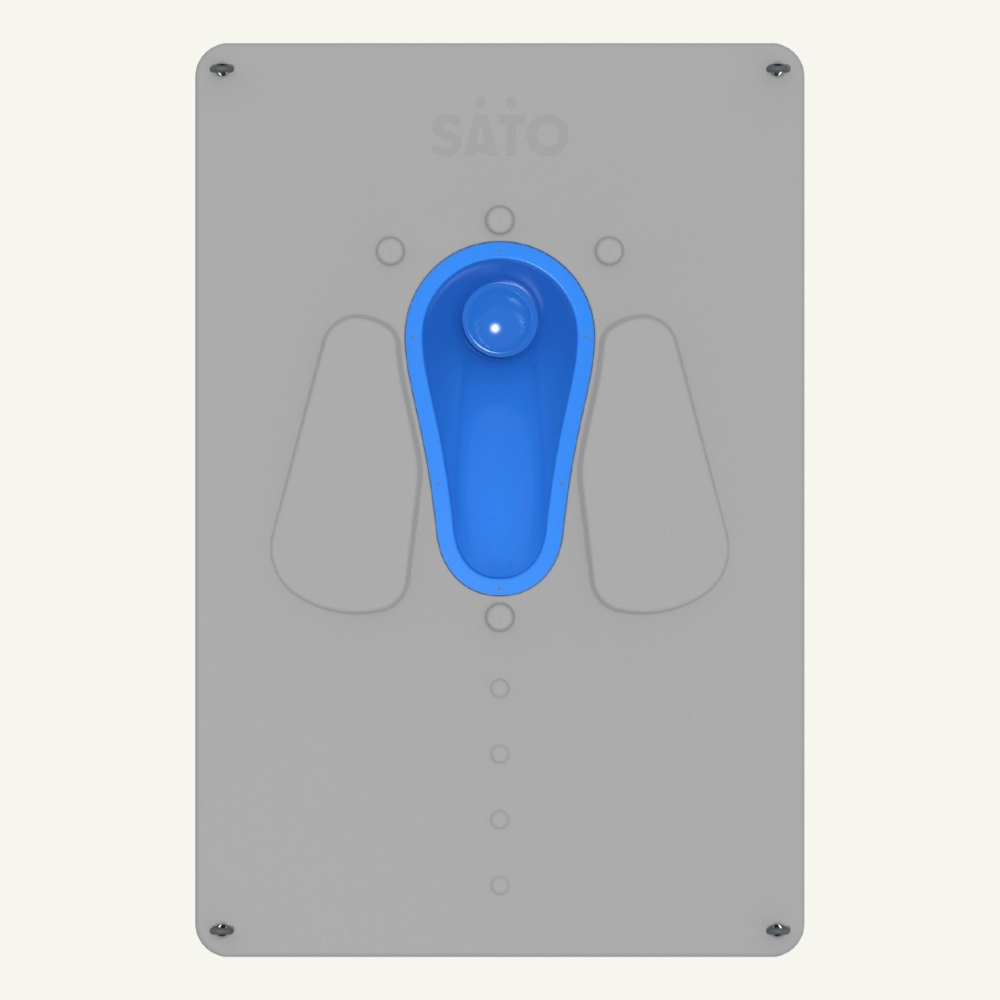

SATO Slab with toilet pan for offset pits

Need to construct a toilet quickly? The sturdy and quick-to-install SATO Slab, has been designed to be easy to clean, self-supporting and suitable for all climates. The award-winning toilet pan design, delivers freshness, comfort, and safety to those that do not have access to running water or sewer systems. It comes complete with a collection box for an offset pit construction.

Benefits

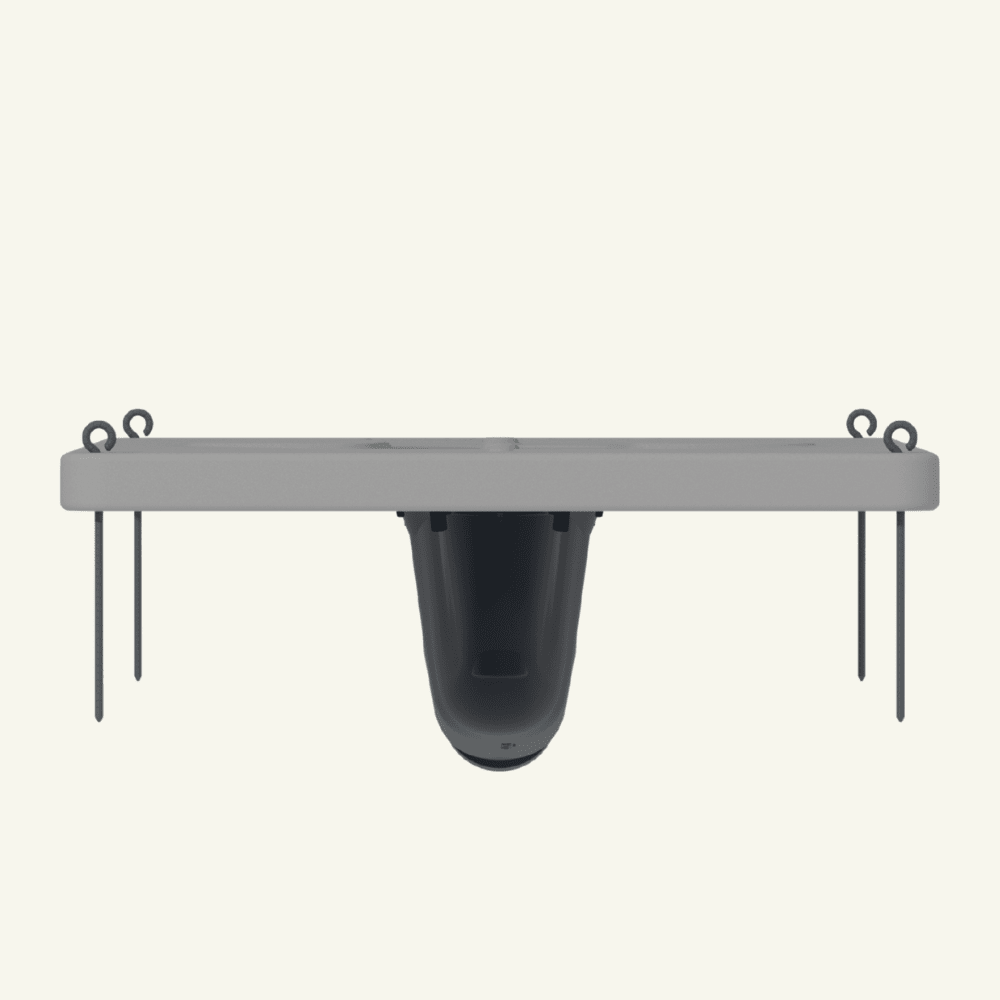

• Quick and self-supporting construction, requires minimal assembly and comes with study iron pegs for quick and easy installation

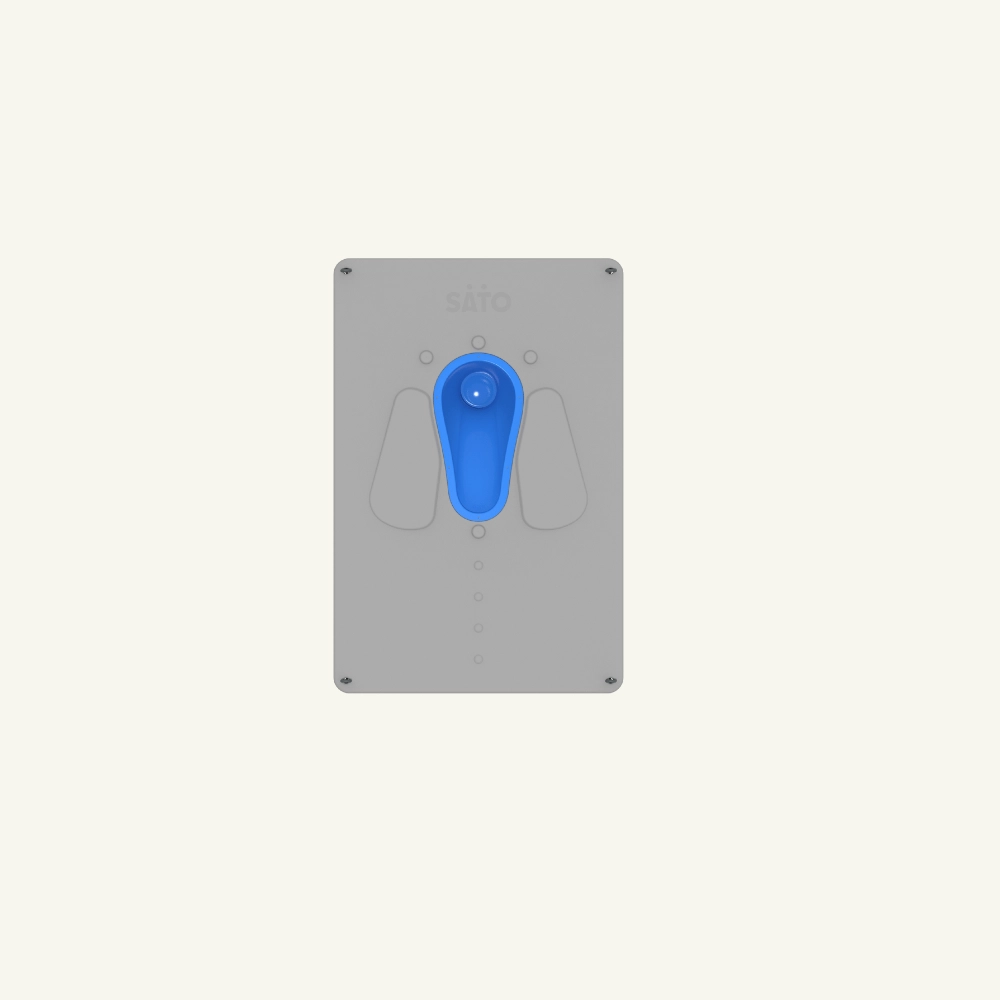

• The one-piece slab has non-slip foot plates and is easy to clean
• Raised bumps provide a pathway for the visually impaired
• Increased safety. Limited outlet aperture helps to prevent young children accidental falling into pits
• Minimizes odour for enhanced user experience
• Saves water. The pan uses less than one litre per flush – that is less than 20% of water required to flush conventional toilet pans
• Shuts out unpleasant view into dark pit and human waste
• Sanitation for a lifetime – our ‘trap door’ mechanism has been tested to last the equivalent of 100 years of use by a household of five

Key features

• The cup that creates a counterweight action is filled with cement during installation
• Optimal counterweight action lets waste and flush water pass through, but otherwise stays closed
• The trap door reduces the transmission of preventable diseases from insects that come into contact with human waste
• Constructed from durable plastic, it is easy to clean with regular off-the-shelf product
• With an integrated flange that stops dirt entering the collection box during installation
• Also available with stool for those less able
• Minimum order quantity of 2000 pieces

Dimensions

Dimensions: 1200mm (L) X 800mm (W) X 53mm (+3mm with footrest) (H)
