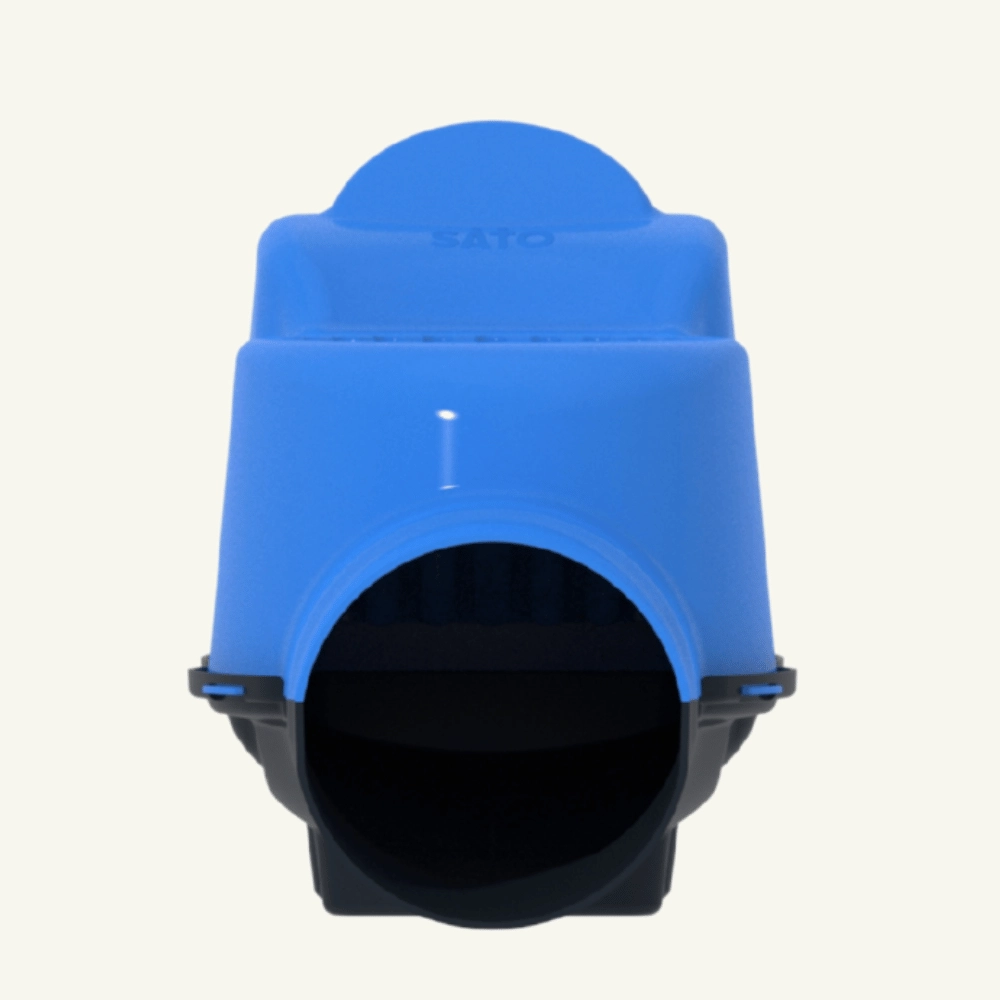

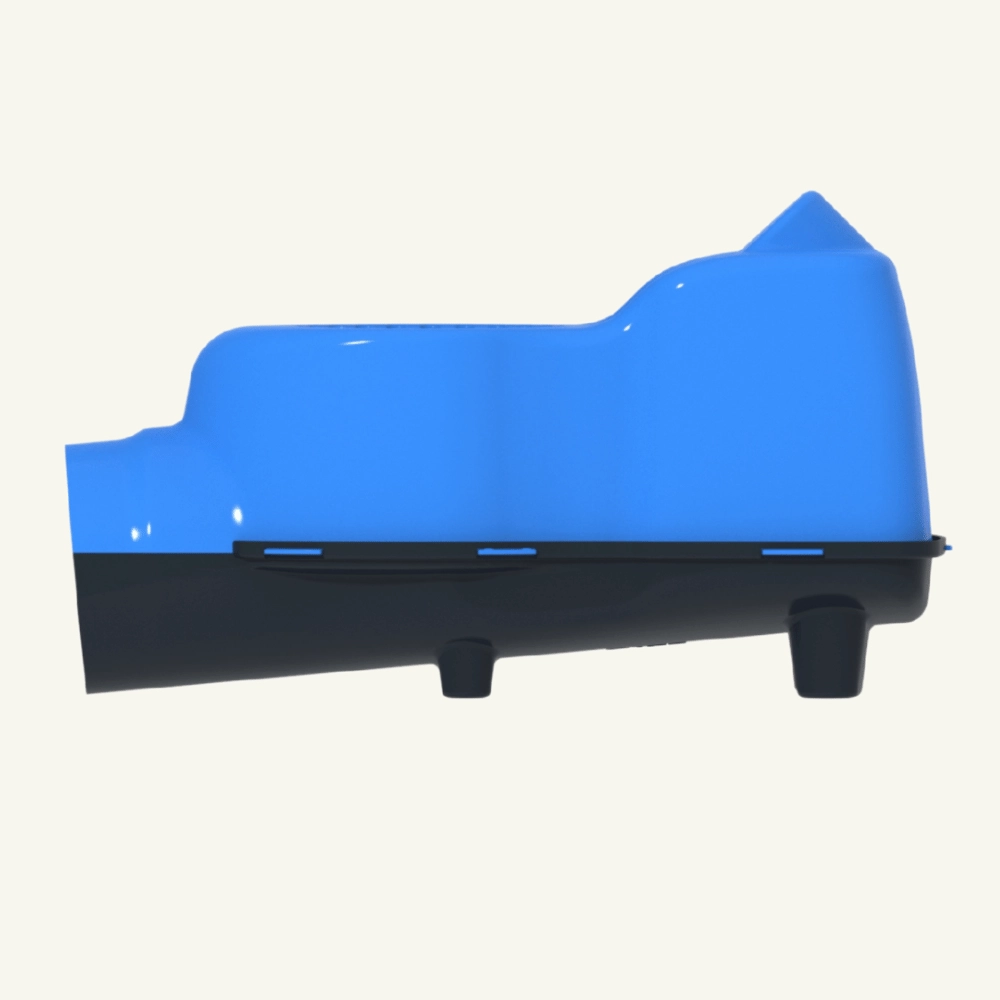

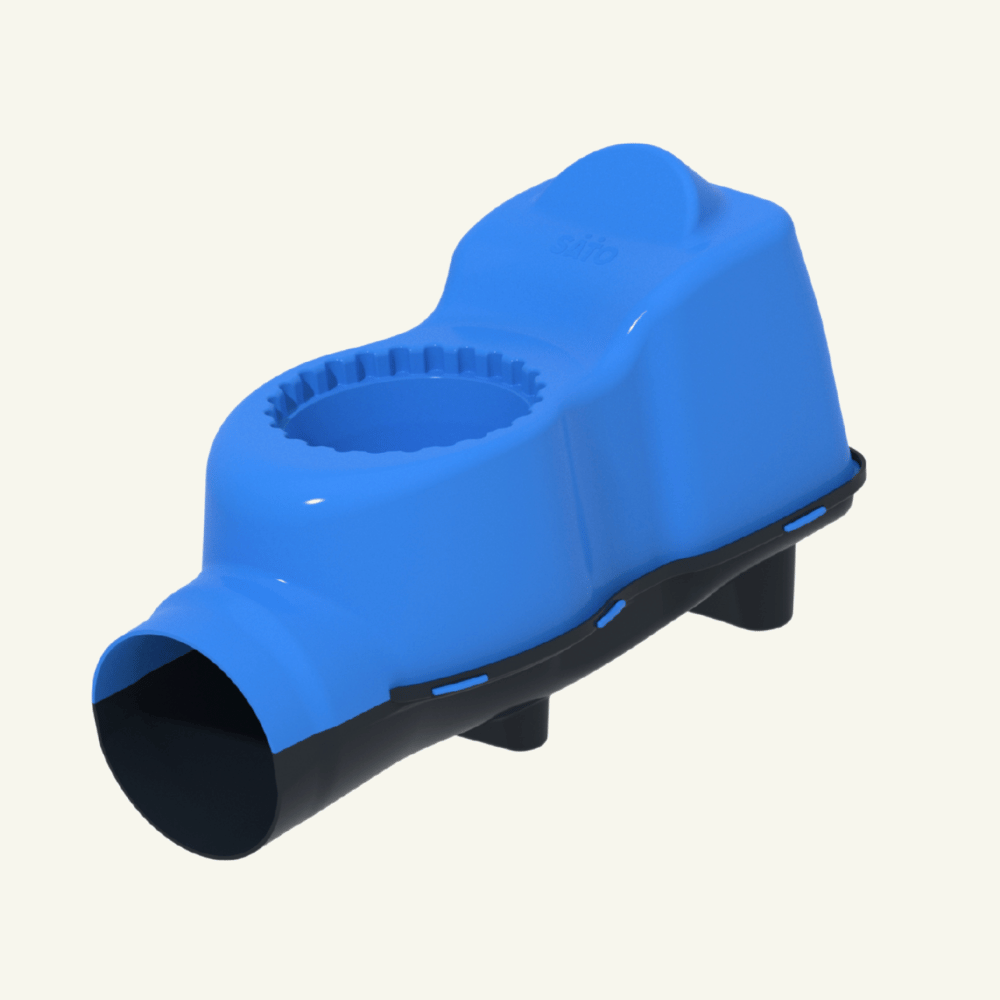

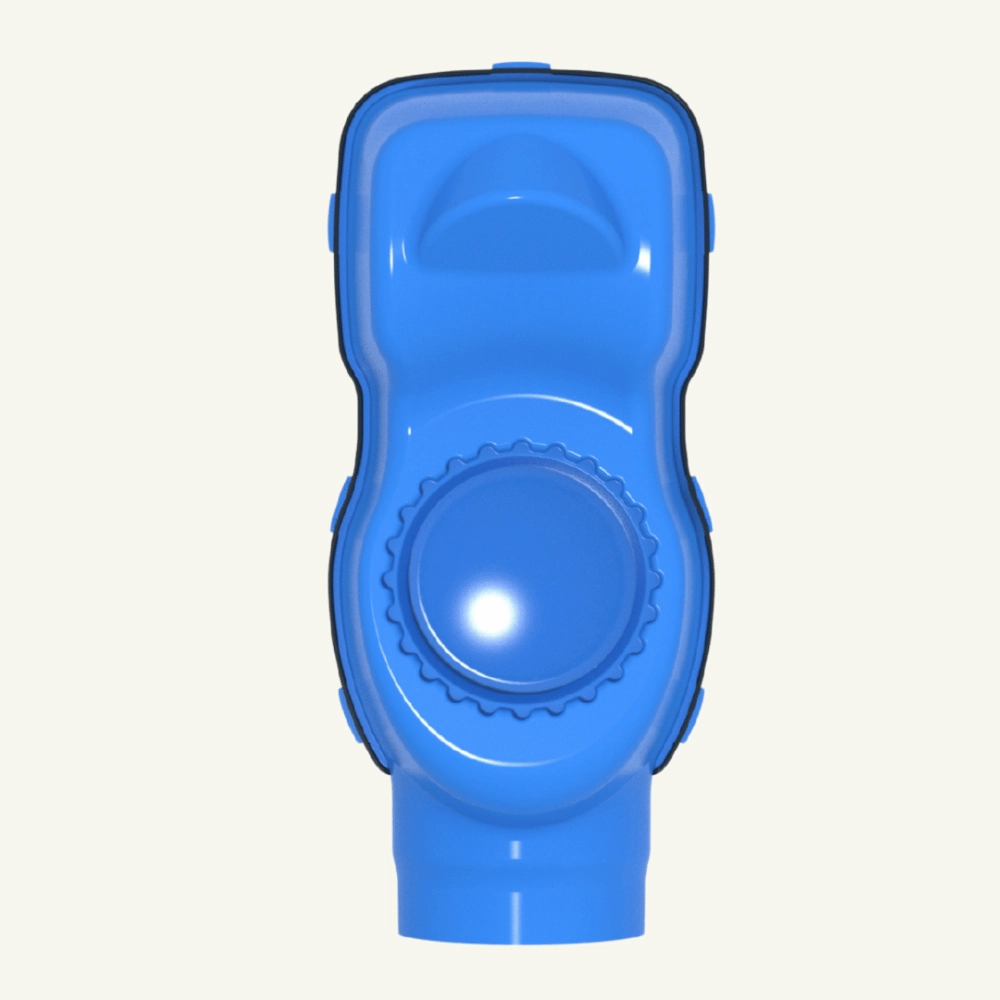

SATO 314Q
SINGLE OUTLET UNIVERSAL I-TRAP CONNECTION SYSTEM (QUIET CLOSE)
The perfect partner to connect all our toilet pans available in India to a single pit. The SATO314Q single outlet connection and sealing system diverts waste to an offset single pit. The I-Trap is designed to house the pan on top and a pipe to the side that directs waste to a single pit (offset pit, septic tanks, local sewer systems, etc.) Connection and sealing system for toilet pans that is compatible with our entire range of pans (rural pans, Orissa pans and stool) The rubber bumper on the mechanism reduces the sound of the trap door opening and closing whilst in operation. Works with all 100mm OD outlet pans and stools. Can accommodate 110mm and 114mm diameter pipes . Provides 24 locking positions to orient toilet in various positions
Universal I-trap: 371 mm (L) 163 mm (W) 217 mm (H)
Manufactured in The Philippines and Indonesia
Benefits
- Minimises odours: air-tight seal closes off pit latrines
- No visual contact with human waste: trap door shuts out unpleasant view
- Water-saving: 1 litre per flush – 80% less than conventional pans
- Easy to maintain: made from durable plastic which is easy to clean
- Durable: trap-door technology tested to last an estimated 100 years
- Keeps flies and insects away: the trap door closes the pit keeping pests away
- Increased safety: limited outlet aperture prevent falls into pits
- Easy to install: can be used in new or retrofit constructions
- Easy to transport: the rigid plastic will not break easily
- Affordable: a cost effective solution for a latrine construction
